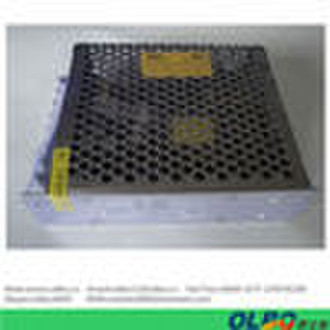

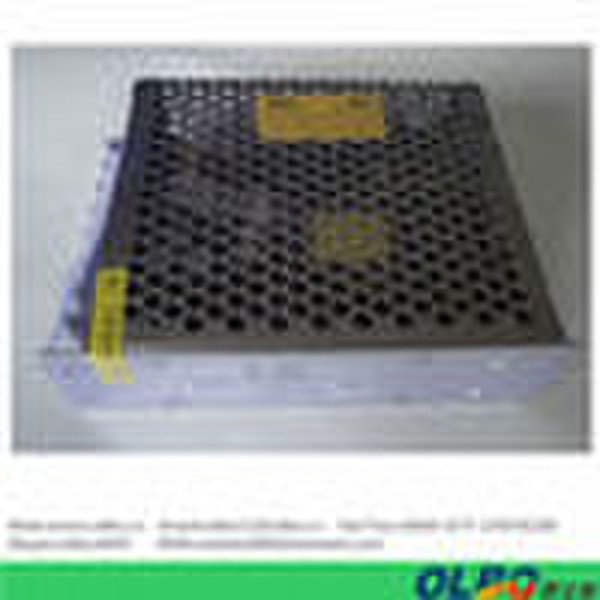

35W Dual output switching power supply

35W dual output,dual switching power supply,ac/dc adapter 105°C output capacitor With short-circuit and overload protection AC Input Power 100% full-load burn-in test High efficiency&Low Operation temperture Installed with EMI filter,minimum wave ModelPerformanceD-30AD-30BCH1CH2CH1CH2DC Output Volta5V12V5V24VOutput voltage tolerance(Note 2)±2%±1%±1%±1%Rated output current4A1.3A2.2A1AOutput current range0.5-4A0-1.3A0-4A0.1-1ARipple and noise(Note 3)50mVp-p50mVp-p50mVp-p100mVp-pInlet stability(Note 4)±0.5%±0.5%±0.5%±1%Load stability(Note 5)±0.5%±0.5%±0.5%±4%DC output power32W75WEfficiency72%74%DC voltage adjustable rangeCH1+10,-5%CH1+10,-5%Input voltage range85 132VAC/170 264VAC;choice by switch 47 63Hz;240-370VDCInput current0.86A/115V 0.45A/230VSurge CurrentCold Start current 18A/115V 36A/230VLeakage Current<0.5mA/240VACOverload protection105% 150% type:FOLDBACK cut off output reset:Automatic recoveryover-voltage protection……High temperature protection……temperature coefficient±0.03%°C(0 50°C) ON+5V OUTPUTStart-up,upper,rentention time200ms,50ms,30msshock resistance10 500Hz,2G 10min./1circle,time:60min.,axesWithstandInput to Output Isolation:1.5KVAC,iutput shell:1.5KVAC,output:0.5KVACInsulation ResistanceInput to Output Isolation,Input&out shell,output&out shell:0500VAC/100M Ohmswork Temperature/humidity-10°C +60°C,20% 90%RHStorage Temperature,temperature-20°C +85°C,10% 95RHOutline dimension129*98*38mmWeight0.4KgsSafety standardsSatisfy UL1012 REQUIREMENT (NOT QPPLY FOR THE MARK)EMC StandardSatisfy FCC PART15 J CONDUCT 10N CLASS ANote:1.The above parameters test conditions: 230VAC input, rated load, 25 °C 70% RH. Humidity.2.Tolerance: includes set up tolerance, line stability and load stability (Note 5).3.The ripple test:20MHz with A12 "twisted pair, interrupted with a 0.1uF & 47uF capacitor circuit.4.The incoming line voltage stability test: the minimum full load voltage of the incoming line to the highest voltage.5.Load stability test: the load from 0% to 100%.Others output is 60% rated load. 6.Each output can reach max current,but the total load can't over the max output power.
